fat tire bike Dual 750w Bafang Motors 20 inch fat tire electric motorcycle e bikes for men ebike beach cruiser
fat tire bike Dual 750w Bafang Motors 20 inch fat tire electric motorcycle e bikes for men ebike beach cruiser
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Place of Origin: Guangdong, China
Brand Name: YEASION
Model Number: V1
Gears: 7 Speed
Range per Power: > 60 km
Frame Material: Aluminum Alloy
Wheel Size: 20"
Max Speed: 30-50Km/h
Voltage: 52V
Power Supply: Lithium Battery
Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
Torque: 60-70 Nm
Charging Time: >3 hours
Motor position: Rear Hub Motor
Battery Position: Down Tube
Battery Capacity: 10.5 AH
Smart Type: Electronic, Digital
Product name: fat tire electric bike
Color: Customized Color
Motor: 52V 1000W Dual Motor F/R
Battery: 52V 22Ah*3 Lithium Battery
Frame: 6061 Aluminum Alloy full suspension folding frame
Brake: Hydraulic Brake
Derailleur: SHIMANO 7 Speed
Tire Width: 20*4"
Net weight: 42KGS
Max Load: 180KGS
|
Model
|
V1
|
|
Wheel Size
|
20"
|
|
Color
|
mat black or custom
|
|
Net Weight
|
48kg
|
|
Frame
|
alloy aluminum
|
|
Handelbar Sets
|
alloy aluminum
|
|
Fork
|
Alloy Suspension Fork
|
|
Shifting Lever
|
7 speed Shimano
|
|
Rear Derailleur
|
Shimano
|
|
Cranksets
|
52t
|
|
Freewheel
|
7 speed Shimano
|
|
Chain
|
anti-rusted chain
|
|
Brake
|
hydraulic disc brake for front and rear
|
|
Wheel
|
20" spoke or magnesium
|
|
Tire
|
20"x4.00 Chaoyang or CST
|
|
3 Riding modes
|
1.PAS mode (5 Shifts);2.Pure Human Riding;3.Pure electric mode (5 Shifts)
|
|
Maximum speed
|
≤35km/h, ( can be set faster as customer required ) 55kmh
|
|
Front light
|
LED Powered by battery
|
|
Max Load
|
180kg
|
|
Battery
|
48V44ah Lithium battery 22ah*2 dual Samsung or Panasonic (Can be customized)
|
|
Charger
|
Overvoltage,Overcurrent Protection
|
|
Motor
|
rear/front drive 48v 750W dual bafang motor. waterproof rating IP54
(Can be customized)
|
|

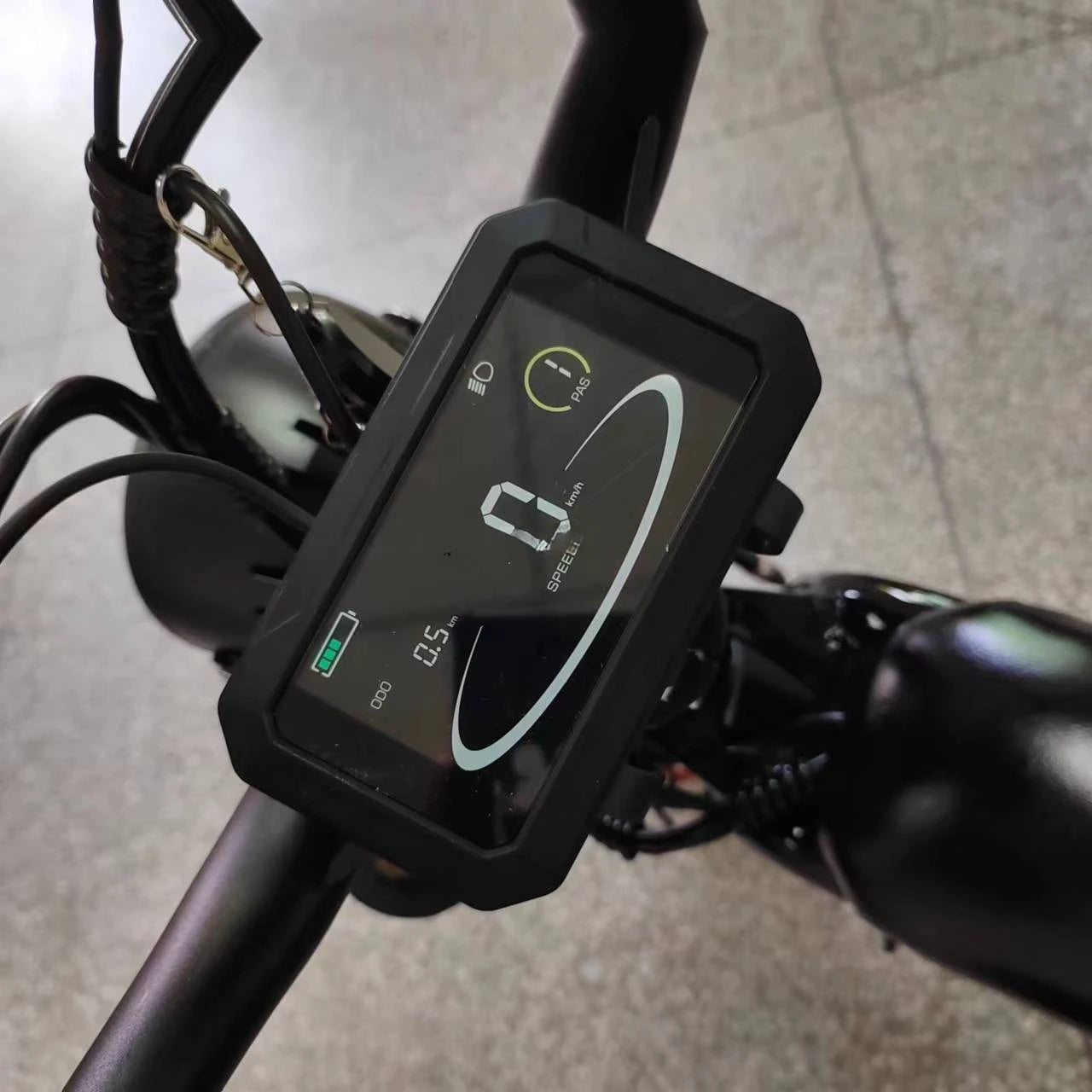

LED Display
|
display Battery lever function Waterproof rating: IP54
|
|
Power assist Sensor
|
Hall
|
|
Controller
|
intelligent control system
|
|
Wire connector
|
All cables are Waterproof Integrated wires
|
Q2: Where is your factory located? How can I visit there? A2:Our factory are located in huizhou city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you? A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4:What payment method do you accept? A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products? A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q6: May I know the status of my order? A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What's the leading time? (How long do you need to prepare my goods? A7: Delivery (no more than 1000pcs) will be arranged within 7-15 days after payment, and arrive you within about 3-7 working days, via international express. Q8: How will you deliver my goods to me? A8: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request
